Lower production costs compared to CNC machining for medium to high volume orders.
Near-net shape production delivers AGMA Class 8-9 quality directly from the furnace.
Excellent repeatability in mass production with minimal variation between batches.
Complex geometries and integrated features possible without secondary machining.

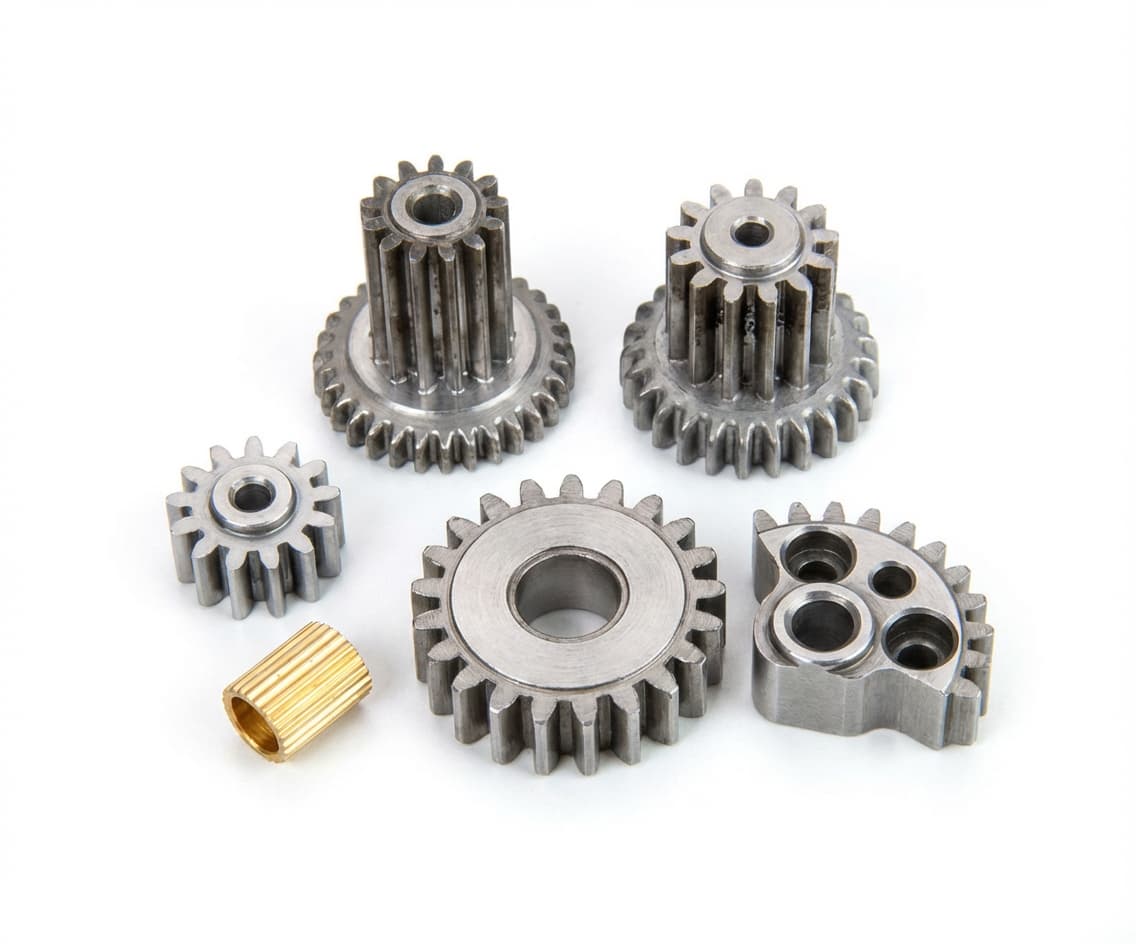

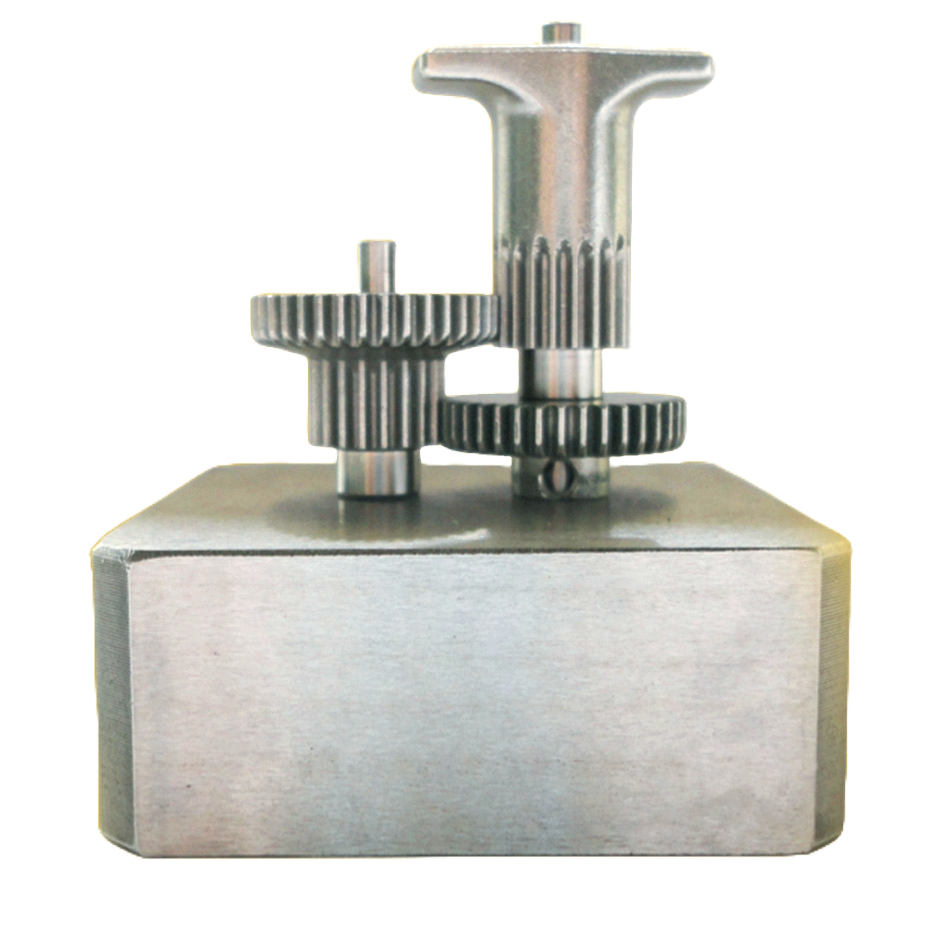

From simple spur gears to complex planetary gear sets, we deliver precision solutions for every application.

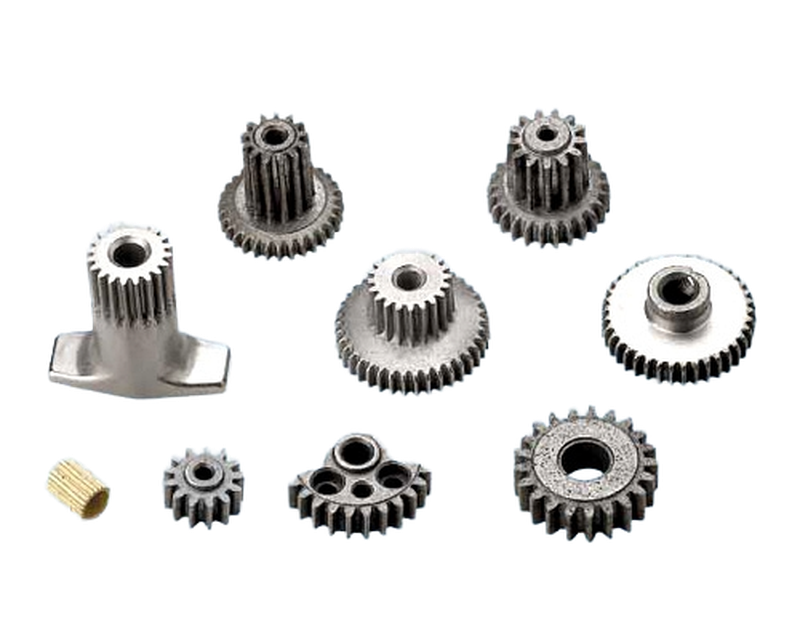

Our sintered gears meet stringent quality standards for demanding applications across automotive, robotics, and industrial sectors.
| Parameter | Specification |
|---|---|
| Material | FC-0208, FN-0205, SS 316L |
| Density | 6.8 - 7.2 g/cm³ |
| Hardness (HRC) | 25 - 45 (heat treated) |
| Tolerance | ±0.01mm - ±0.05mm |
| Module Range | 0.5 - 3.0 |
| Max Diameter | Up to 120mm |
| AGMA Quality | Class 8-9 as-sintered |
Transmissions, power steering, window regulators
Reducers, actuators, precision motion systems
Drills, grinders, impact drivers
Pumps, conveyors, machinery
Get a free engineering consultation and quote. Our team responds within 24 hours.
